T24-PF2-TB KSD301 Bimetal Thermostat(Phenolic case; Aluminum head; Max Ambient Temp 150℃)

The most versatile thermostats.

A wide range of temperature, low temperature till high temperature, can be set according to customer requirements.

CAP/Case material, Bracket type/Terminal Orientation/Terminal Size could be customized based on actual demand.

See the bottom for details.

Type:                        Single pole - single throw

Operating temp:       UL/CUL: 40℃～250℃
                                 TUV : 0℃～230℃

                                  NEMKO: 50℃～200℃

                                  CQC : 50℃～280℃

                                  Considering three case material, Phenolic/PPS/Ceramic.

Differential:               5℃ or more, Standard: 10℃～25℃

Case Material:            Phenolic(could be customized, more options such as PPS, Ceramic...)

CAP/Bracket:             Aluminum.

Height:                       12.4mm(the other option is 9.6mm)

Electrical Rating:        16A/250V AC Resistive load
                                   15A/125V AC Resistive load
                                   10A/250V AC Resistive load

Temp Tolerance:          ±3℃ or more, Standard: ±3℃ ~ ±12℃(depend on customer required operating Temp)

Endurance:                   100,000 cycles or more

Circuit Resistance:        50mΩ or less

Insulation Resistance:  100MΩ or more(DC 500V)

Dielectric Strength:       AC 1,450V

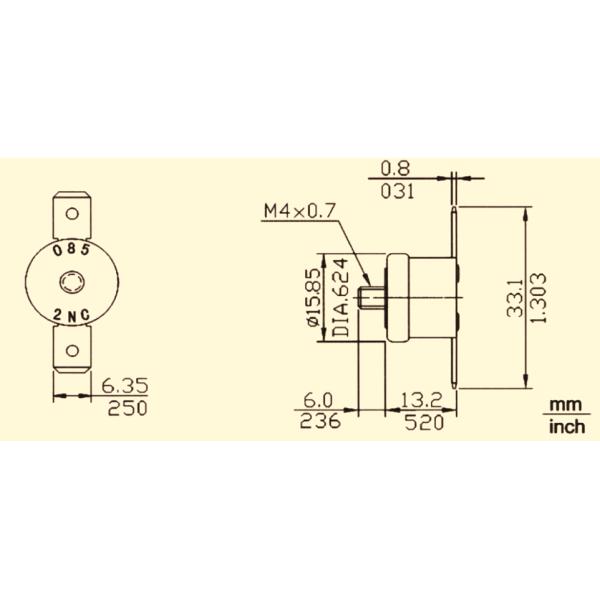

Current bracket/Terminal types and case material options are as below. We would like to cooperate with customer for new designs.
